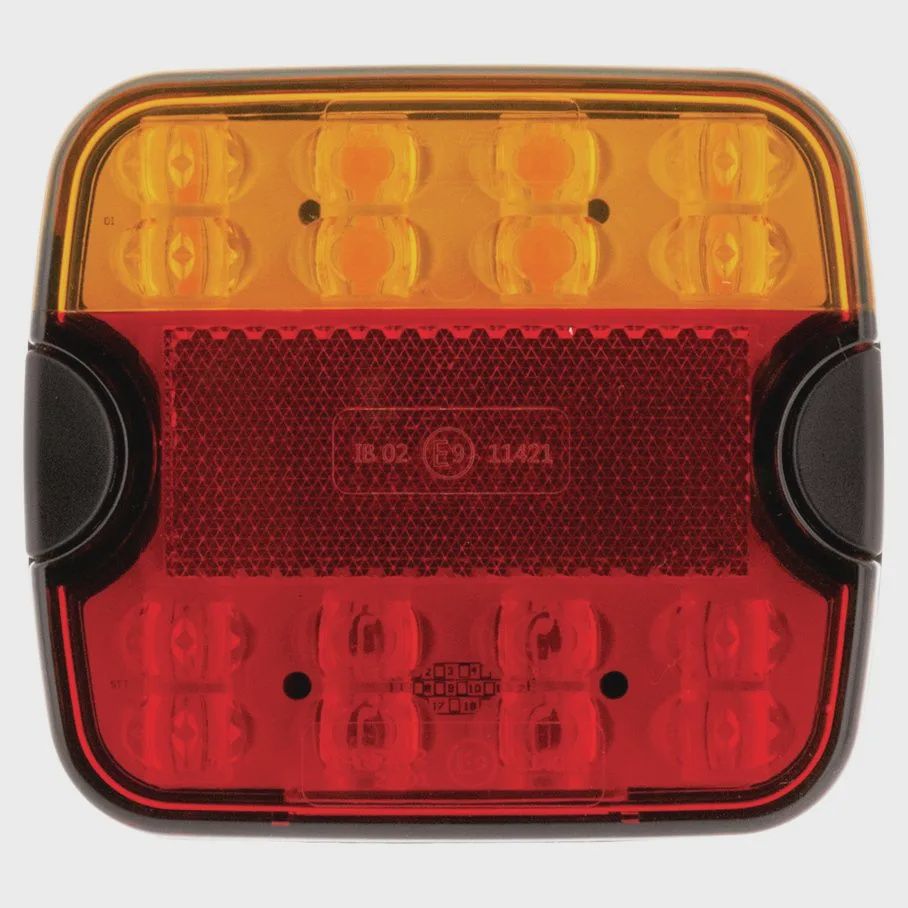

TRAILER LIGHT STOP/TAIL/INDICATOR

Type	LED
Shape	Square
Voltage	Multivolt
Mount	Surface
Width (mm)	104
Height (mm)	94
Depth (mm)	20

Hulk 4x4 LED Combination Stop / Tail / Indicator Lamp 9 - 33 Volt

Red and Amber Illumination

8 x High Intensity Red LED's and 8 x High Intensity Amber LED's

0.02amps at 12 Volt Current Draw for Stop function

0.01amps at 12 Volt Current Draw for Tail function

0.02amps at 12 Volt Current Draw for Indicator function

Red and Amber Polycarbonate Lens with unique Optical Circular internal lens and inbuilt Retro Reflector

Slimline Black ABS Plastic Housing with mounting screws included

Surface Mount, low mounting depth for easy installation

500mm Sheathed with 4 wires

10,000 Hours LED Lifespan

Fully encapsulated circuitry

Sealed against Dust and Moisture

ADR 49/00 Rear Stop Lamp specifications approved

ADR 6/00 Category 2A Rear Indicator Lamp specifications approved

ADR 47/00 Reflector specifications approved

Refer to ADR 13/00 for mounting instructions

IP67 Rating
